Designs

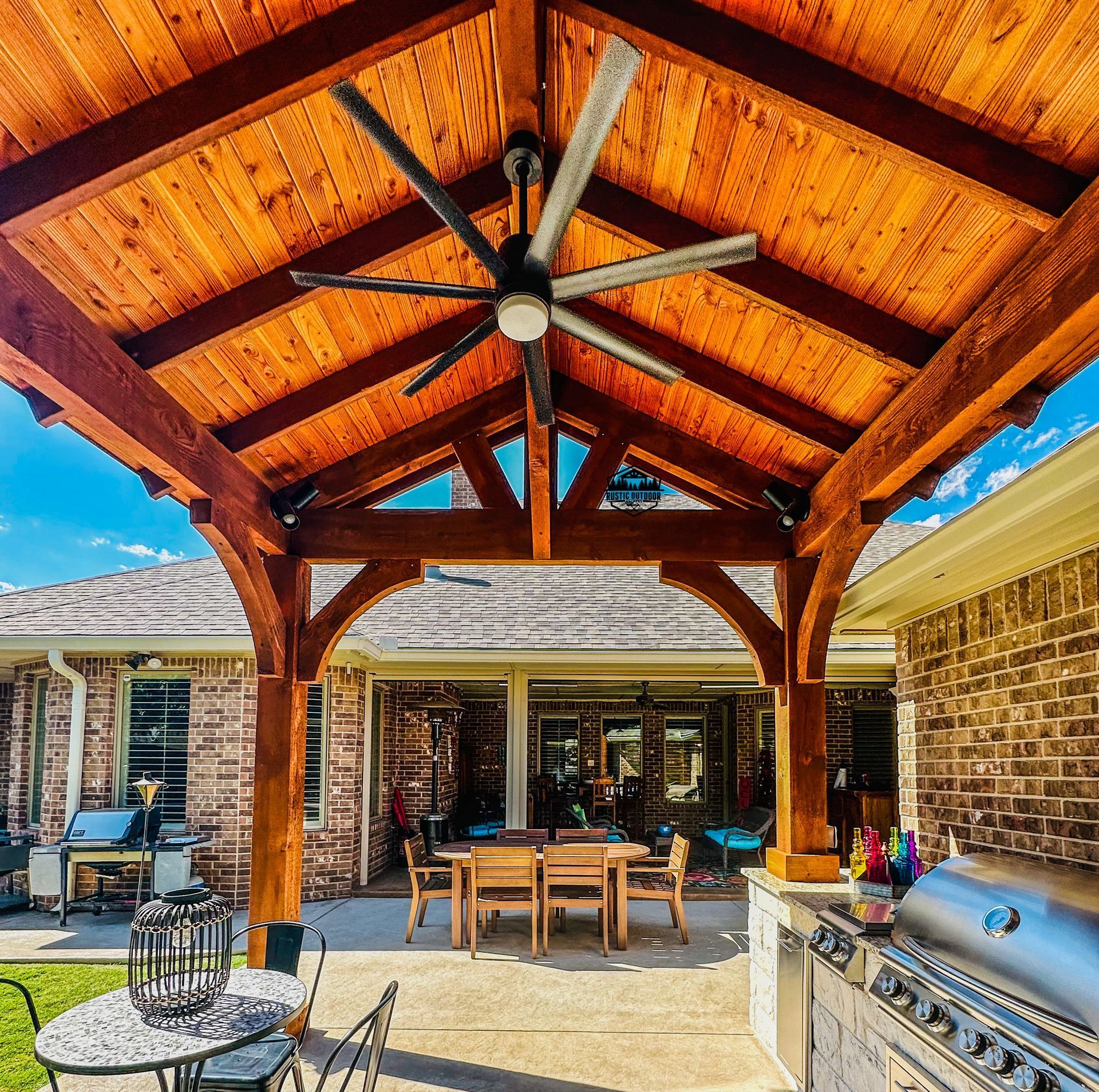

Pavillion

The pavilion is the ultimate design in custom patio covers. It is a gabled structure with a solid roof that gives you protection from the sun and rain while also giving the grand cathedral ceiling! It includes the following features –

8x8 posts with base trim
4x12 beams with decorative cuts on two ends
4x8 trusses and webbing on each end
2x6 rafters 24” on center
1x6 tongue and groove decking
R panel metal roofing and trim
4x12 arched braces
Button
Flat Top Pavillion

The Flat Top Pavilion has a solid roof with a slight slope that will give complete protection from the sun as well as the rain! It is a great getaway from the midday heat as well as those warm rainy evenings. It includes the following features –

6x6 posts with base trim
4x12 beams with decorative cuts on two ends
2x6 joists 24” on center with decorative cuts on two ends
1x6 tongue & groove decking
R panel metal roofing and trim
4x12 arched braces
Button
The Bold Pergola

The Bold Pergola is designed to really make a statement in your backyard! The massive wood timbers that are used in this design give it a presence that outshines all other pergolas. It includes the following features –

8x8 posts with base trim, corner trim, cap trim and corbels
6x12 beams with decorative cuts on two ends
4x8 joists 24” on center with decorative cuts on two ends
4x4 stripping 8” on center
4x12 arched braces
Button
The Sunsetter

The Sunsetter is our most economical package that still gives great protection from the sun. It comes with a shade screen that covers the entire top of the pergola that provides a great amount of shade and includes the following features –

6x6 posts with base trim
4x8 beams with decorative cuts on two ends
2x6 joists 36” on center with decorative cuts on two ends
2x4 stripping 24” on center
4x8 arched braces
Button
Premium Pergola

The Premium pergola is a beautiful design that includes many decorative features. It includes additional decorative cuts on the beams, joists and posts. It gives a more upscale appeal while also providing more than adequate shade cover. It includes the following features –

6x6 posts with base trim, corner trim, cap trim and corbels
4x12 beams with decorative cuts on all four sides
2x6 joists 12” on center with decorative cuts on all four sides
2x2 stripping 5” on center
4x12 arched braces
Button
Deluxe Pergola

The Deluxe Pergola is a great option when looking for more shade on your patio on those hot afternoons and warm evenings. The spacing is designed so that during the afternoon hours you will have a considerable amount of shade and as the sun starts to set the shadows overlap to provide complete shade cover. It includes the following features –

6x6 posts with base trim
4x8 beams with decorative cuts on two ends
2x6 joists 12” on center with decorative cuts on two ends
2x2 stripping 5” on center
4x8 arched braces
Button
Standard Pergola

The Standard Pergola is a great pergola for a decorative piece in a garden or any situation where more light coming through the pergola is desired. The open spacing of this pergola will provide some shade but will let a lot of sunshine through. It includes the following features -

6x6 posts with base trim
4x8 beams with decorative cuts on two ends
2x6 joists 16” on center with decorative cuts on two ends
2x2 stripping 12” on center

Button

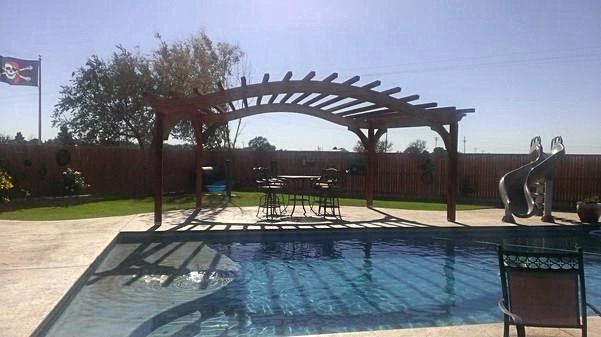

Arched Pergola

The Arched pergola is a truly unique design with a classic architectural approach. The arch is a design element that has been around for centuries and we have put our own spin on it to make an amazing pergola. If you are looking for something stunning and beautiful, this pergola will set your backyard apart from all others.

6x6 posts with base trim
4x12 custom arched beams
4x4 joists
2x2 stripping
4x12 braces
